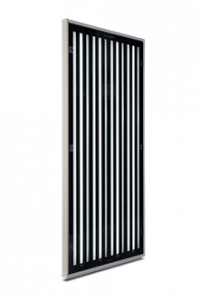

WLO puremaxLED®

WLO puremaxLED Oberflächenkontrollleuchte

The surface control optic WLO PM is used for surfaces with low to medium reflection and can be employed in all coating processes in the industry. It generates a high-contrast reflection image and is strongly shielded to reduce glare in a direct and lateral viewing direction.

Suitable for the following areas, especially in the automotive sector: press plants, topcoat preparation and finishing area



Options Dimensions in mm [WxHxD] (inches)
  • With installation frame, with mobile stand
  • Additional lamp color temperatures
  • Additional housing colors according to RAL
  • Connection cable in other lengths
  • 860 x 1560 x 65
    (33.86 x 61.42 x 3.94)
  • 860 x 1260 x 65
    (33.86 x 49.61 x 3.94)

Features

Assembly (according to the design version)

  • 4 x LED lamp (included)
  • 4 x 6.500 K

LED controller

  • Electronic, digitally dimmable (EU), analog dimmable (US)

Optic

  • 4 x centrally arranged patented prism panes with plano-convex lens and black fields
  • 4 x symmetrical reflectors, refector chambers separated with regards to light

Housing

  • Steel sheet
  • RAL7035 powder coated

Front glass panel (lockable door)

  • 6 mm (0.24″) one-panel safety glass accoding to EN 12150
  • Frameless design

Opening

  • 3 x quick-lock system

Bushing

  • Harting plug system or direct clamping in junction box
  • 3 m (118.11″) connection cable

Technical specifications

Permitted ambient temperature +5°C to +35°C 41°F to 95°F Rated voltage 220-240 V, 50/60 Hz 120-277 V AC ±10%, 50/60 Hz Degree of protection IP54 Protection class I UGR limit ≤15

Quality criteria

  • Photobiological safety (EN 62471): Risk group 1
  • LABS-free
  • CE label
  • ENEC certification
  • EAC certification
  • ETL certification (US)
